HAIMER

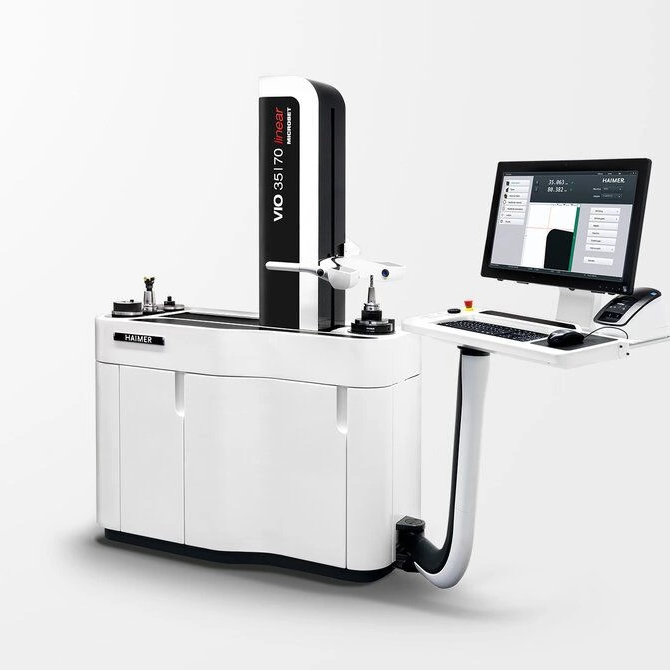

HAIMER VIO LINEAR
- Microvision VIO image processing system
- High precision and fast axis-positioning via
linear motion - ISS-U universal ultra-high precision spindle with automatic adapter identification, mechanical clamping and motorised indexing 4×90° and 3×120°
- 4×90° and 3×120° electronic indexing
- Pneumatic spindle brake
- Robust, long-life cast iron construction
- Thermally optimised material combination
for improved repeatability - Motorised fine adjustment of all axes
- 24" multi-touch screen
- System VIO incl. storage for up to 9 adapters
- Sigma function
- Memory for 1.000 zero points
- Unlimited tool memory
- User management
- Swivelling operating panel
- Edgefinder
- Incident light
- 2 µm spindle runout
- ±2 µm repeatability
| Max Verktygsdiameter Ø | 420 / 700 / 1000 mm |
| Max Verktygsdiameter Ø | 420 / 700 / 1000 mm |
| Max Verktygsvikt kg | 160 kg |
| Max Verktygsvikt kg | 160 kg |
| Max Verktygslängd | 500 / 700 / 1000 mm |
| Max Verktygslängd | 500 / 700 / 1000 mm |
| Vikt | 400 - 550 kg |
| Vikt | 400 - 550 kg |
